Oписание продукта

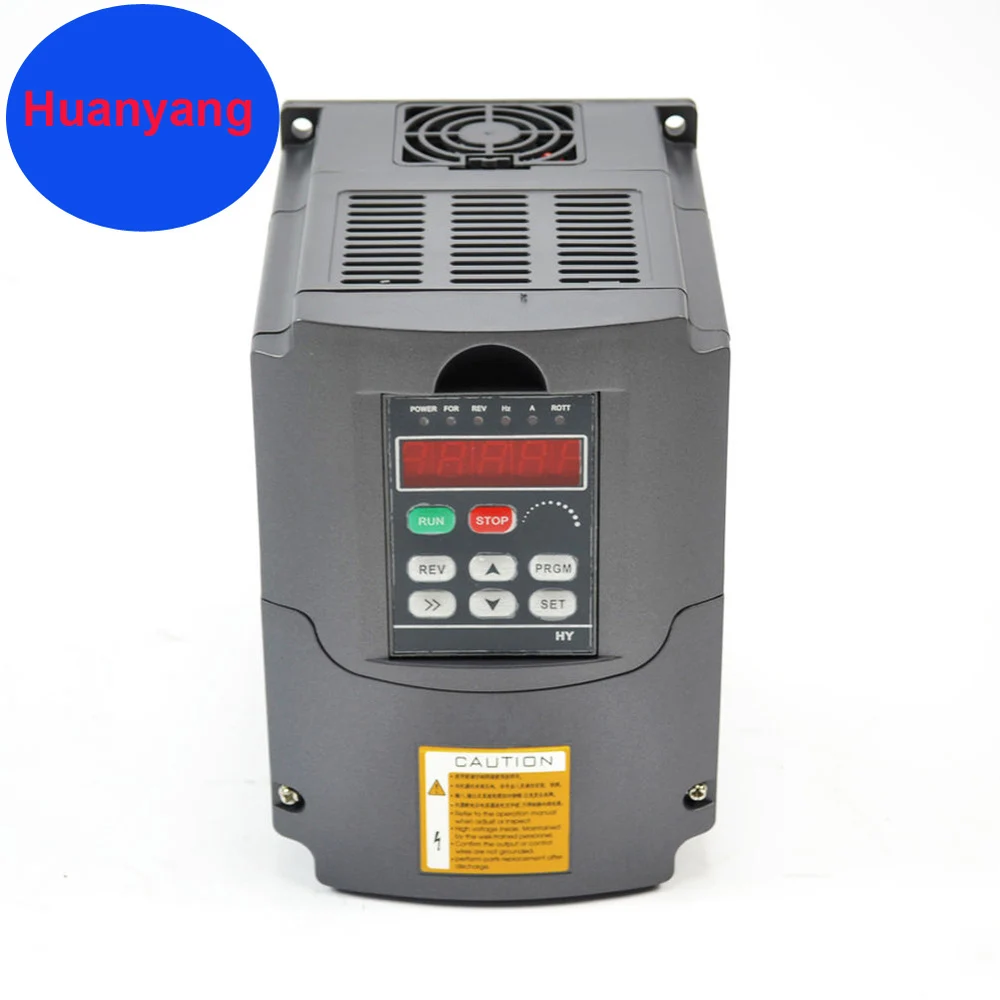

Variable Frequency Drive Inverter VFD NEW
5HP 5.5KW  220V

This VFD can be used for constant torque loads(such as hard starting:Air conpressor,HVAC units) and variable torque loads(such as pumps,fans,etc) It can be used as a motor speed control and a phase converter.The inpute for this VFD is 1 or 3 phase as you like.You can control different speed when you use this VFD.Most of our customers bought this VFD from us to use for:Lathes,Mill,car Hoists,Pumps&conveyors,etc.This item use sine wave PWN(SPWM) for the control system and performace excellently.

1b

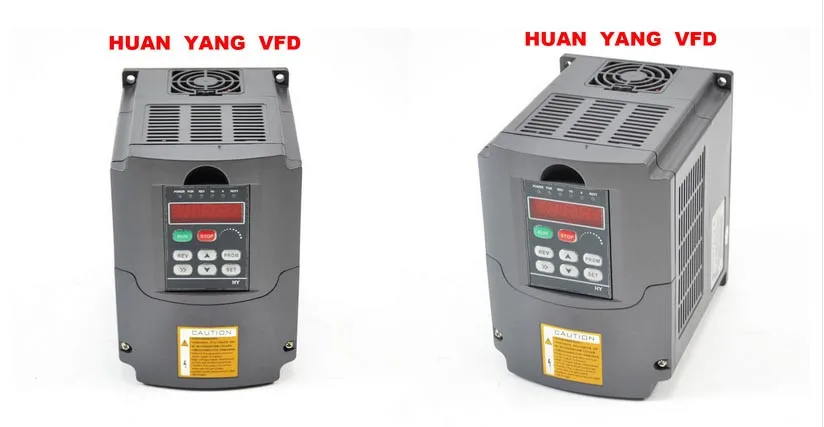

compare02compare01



Technical Paramerters:

1.Inpute voltage:220V±15%(we also stock 110V and 380V+/-15%,please contact us for item stock)
2.Output voltage:208-240VAC(analogous to input voltage)
3.Input Frequency:48-63HZ
4.Output Frequency:0-400HZ
5.Inpute phase:1 phase or 3 phase
6.Output phase:3phase
7.warranty:1 year
(we also stock 4KW 7A, 2.2KW 10A 220-250V, 3KW 220-250V and 380V modol, please contact us for stock )

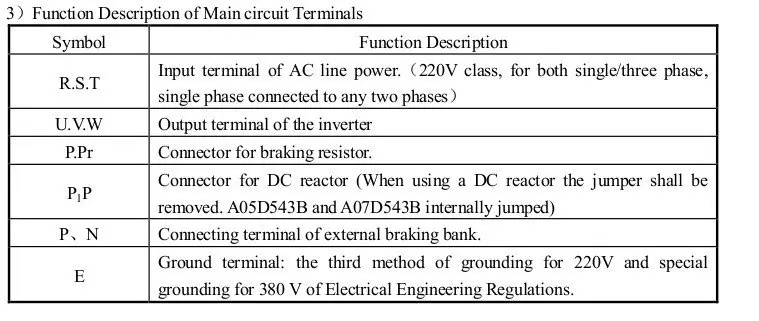

Function Description of Main circuit Terminals:

Basic Connection Diagram:

 inverter drawing.jpg



Detail Parameter:



Easy PLC function can realize 16 legs of speed and inverter control function;
RS485 communication port, adopting standard international MODBUS main circuit control;
With extremely strong anti-jamming capability
Low output ratting torque0.5HZ-150%, low speed running ability;
Carrier adjustable by 16KHZ, completely soundless working environment;
Broad voltage working area
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
With perfect error protection and short circuit starting protection capability;
PASS ISO9001 quality certification which means this item is the top quanlity item


combine VFD



Warranty:

We offer one year warranty. Within warranty period, all exchanges or repairment due to defects are free (Buyer is responsible for shipping charges).


Express delivery:

We will ship the goods by  FEDEX/DHL/EMS express and other commercial express to you  and e-mail  tracking number immedicately.Shipping time: 5-10 working days will be arrival depend on location.Please note that if your address is too remote to achieve, there will be an extra remote surcharge.

For Russian customers, we can send the machine by CDEK and it is commercial and also easy to do with the customs clearance, transit time: 25-40 working days. But dear customer, if your address is too remote to achieve by CDEK, there might be remote surcharge occurs. But please do not worry about that, we are always willing to refund all your money back if you do not need it anymore. And we would be really appreciate if you check with us for that in advance with your city and post code.


Purchasing instructions:

At the time of purchase, please include your contact phone number in your Paypal comments area. A contact phone number only for shipping purposes. (International delivery required your sign so we required.

we are honor and responsible seller.we always try our best to offer best quality and service to buyer with our 100% sincerity.Hope you will love our items.Pls don\'t leave us negative feedback or low rate or open a case without any communication if there have problem,if you satisfy with our items.Pls leave a good feedback with 5 star to us.thanks so much in advance.

if you don\'t receive the item or item lost in the delivery.we will refund you full money.

International Buyer.pls Note:

a,we will specify low product value in the shipping invoice so that there maybe no import taxs or Just very little.But for EU members and USA customers, if the package is sent from EU warehouse and USA warehouse, you need not to pay for any import tax. For Russia customers, we send the package by CDEK or EMS, also no import tax. For Brazil customer, we send by post mail, no expensive import duty occurs as well.

b.Import duties,taxes and other charge are not included in the item price or freight,These charges are buyer\'s responsibility.

c.please check with your country\'s customs office to determine what these additional costs will be prior to bidding/buying.

The buyer from brazil.ukraine.russia.pls contact with us about the freight before you buy our item.


Technical support:

we have a professional technical support group for all of our items selling.if you have any  technical
problem on our items.Pls feel free to contact with us.our technical support always beside you.
