[Genuine] kpt 255h plus kpt 255+ sat finder hd test cctv camera lcd backlight button 4.3 inch DVB S/S2 signal test with av usb

[Genuine] kpt 255h plus kpt 255+ sat finder hd test cctv camera lcd backlight button 4.3 inch DVB S/S2 signal test with av usb
  • Продавецlevellawnservice.us
  • Список ценUS $136.89piece
  • Продажная ценаUS $136.89piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,1 (403)

Oписание продукта

8HTB1PX3kMVXXXXbnXVXXq6xXFXXXkHTB1zsESNpXXXXcvXXXXq6xXFXXX062320HTB1xeKvNpXXXXb_aXXXq6xXFXXX3

Product Description
•3.5X-90X continuous stereo zoom magnification power
•Super widefield optics provides crystal stereo erect images
•1-1/4" (33mm) SUPER widefield of view and 4" (100mm) working distance
•3D boom stand allowing point microscope head in any direction desired
•Trinocular port for adding photo/video capability

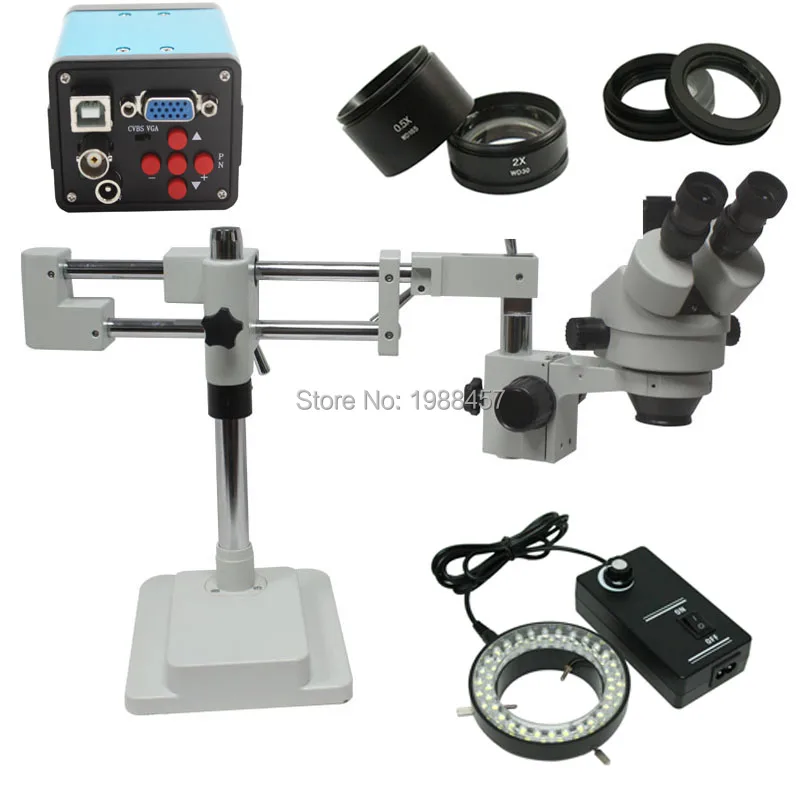

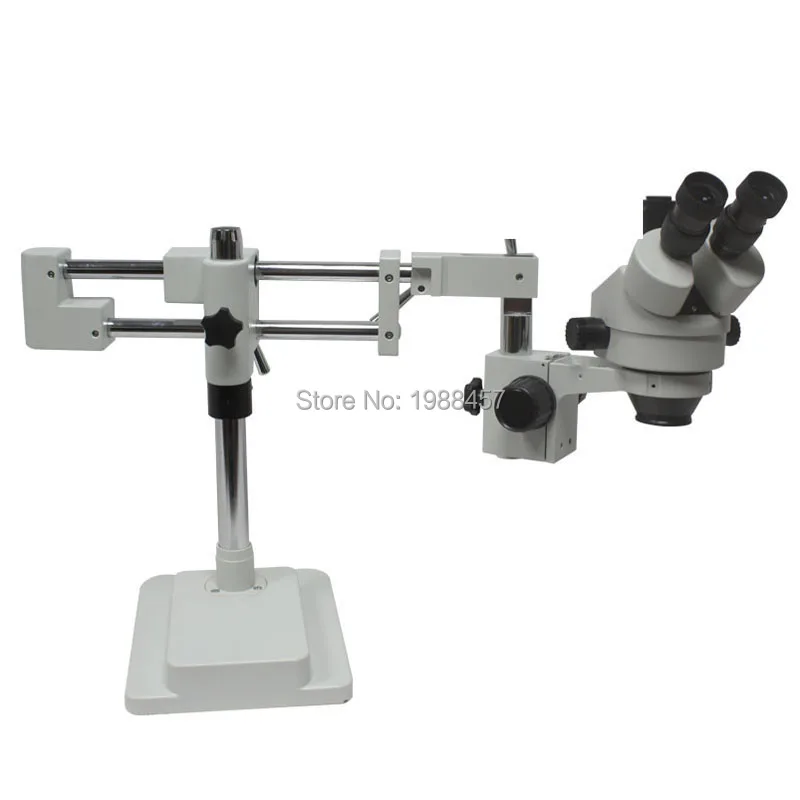

This is a trinocular 7X-90X zoom stereo microscope that gives crystal clear sharp images. It comes with a trinocular head with 30mm super widefield, high-eyepoint 10X eyepieces and a double-arm heavy-duty boom stand. The 45 degree inclined trinocular and high-eyepoint design ensures an easy observation, especially for eyeglass wearers. The rubber eyeguards provide further comfort. The trinocular port enables to add photographic or video capability. The double-arm boom stand allows you to turn the microscope head around three different axes (x, y, and z), allowing you to point the microscope head toward to ANY direction. This microscope offers high resolution, super widefield of view, 6.5:1 magnifying zoom range and 4" (100mm) working distance. It is an ideal instrument for research labs, gemologists, engravers, collectors and anyone in semiconductor and/or electronic industry. This stereo zoom microscope is made by the same technicians and on the same production line as optical instruments for Leica, Zeiss, Nikon and Olympus. It comes brand new in factory sealed boxes.
Features:
• 3.5X-90X Continuous Zoom Magnification Range
• Trinocular Design for High Quality Photo, Video or PC Attachment
• Upright Tube for USB Digital Camera, Video Camcorder or CCD Camera
• 30mm Super Widefield 10X Eyepieces
• 4" (100mm) Large Working Distance
• 45 Degree Inclined Trinocular Head
• Crystal Clear Original True Color Images
• Erect Sharp Stereo Images over a Super Widefield of View
• High Resolution with Great Flatness and Contrast
• Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
• Both Ocular Tubes with Adjustable Diopters
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• Versatile Boom Stand Covering Large Working Area
• Double-Arm Design for 3-Degree Freedom, Allowing Placing Microscope Head Toward to Any Direction
• Rugged Solid Cast Steel Base Finished with Stain Resistant Enamel
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Manufactured under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Manufacturer Warranty
Specifications:
• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20
• Objective: 0.7-4.5X
• Zoom Range: 6.5:1
• Maximum Field of View: 1-1/4" (33mm)
• Minimum Field of View: 3/16" (4.75mm)
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 4" (100mm)
• Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
• Accessories: eye-gu
Camera specific parameters:
Model: B31
Resolution: 1920 * 1080P
CCD interface: CS
Output: USB / AV / VGA
Frame rate: 45FPS
Image format: JPG
Video format: MOV
Effective pixels: 2.0MP
White Balance: One White Balance / Manual / Auto
Function: resolution, camera, video, contrast, cross line, horizontal vertical image, fixed screen freeze, no smear
Working temperature: -20 ℃ -70 ℃
OSD: English / Chinese

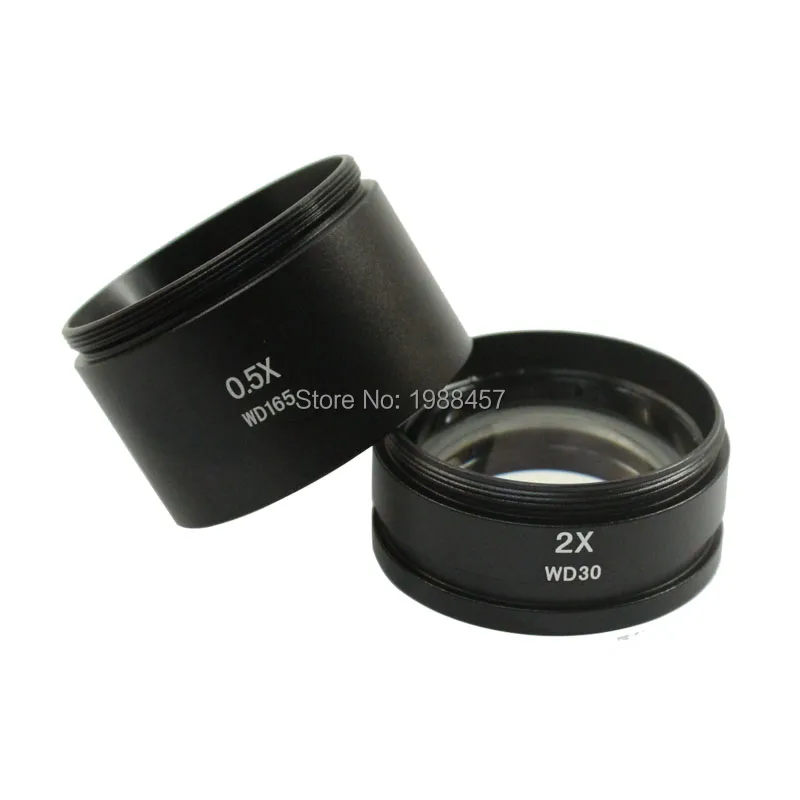

0.5X and 2X auxiliary objective lens:
Uses: Zoom in or enlarge the stereomicroscope magnification. Applicable to all stereoscopic microscopes (binoculars, three heads) for narrowing or enlarging the viewing magnification, increasing or reducing the field of view.
Working distance: 0.5X field of view 165mm, 2X field of view is 30mm.

Dust-proof mirror Use: In the process of repairing the motherboard, the use of high-temperature air guns will be attached to the smoke on the mirror, so that your microscope becomes more blurred. Install the dust mirror, you can keep the mirror clarity, you can also remove the cleaning.

144 bright white LED bulbs:
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V AC, 50-60HZ
Suit for the dia of the lens: 30mm-60mm

The package includes:
1 x Microscope camera
1 x VGA Line
1 x Trinocular stereo zoom head
1 x pair of extra wide Widefield 10X eyepieces
1 x LED ring light with adapter
1 x rotating bracket
1 x Focus frame
1 x for safety glasses
1 x for the clip
1 x dust cover
1 x dust mirror
Auxiliary objective lens according to the order ordered by the buyer
1 x 2X auxiliary objective
1 x 0.7X auxiliary objective
1 x 0.5X auxiliary objective
